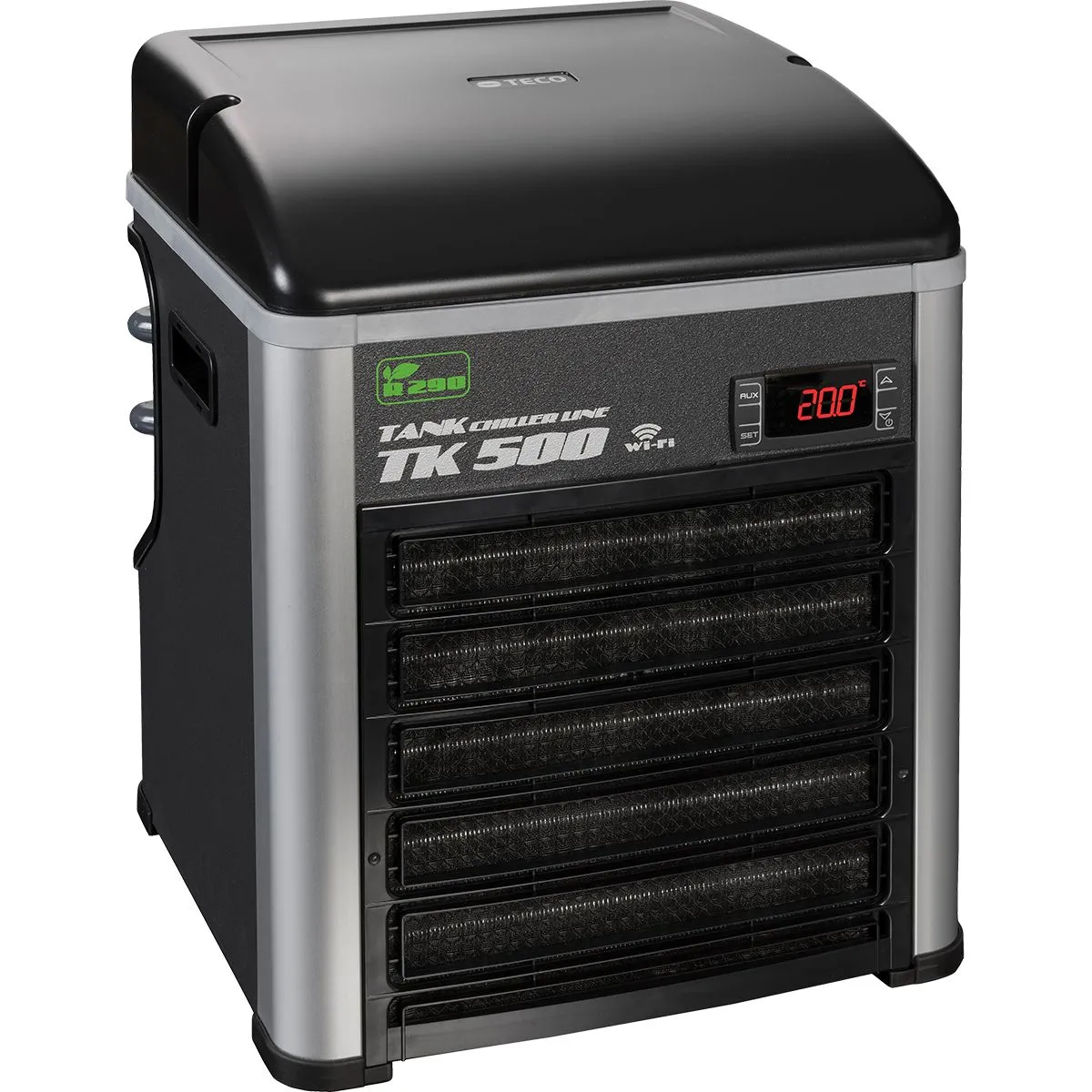

Teco TANK TK-500 Aquarium Chiller
EFFICIENT COOLING TECHNOLOGY
Internationally-recognized high-end compressors and titanium coaxial heat exchangers provide high performance, low energy consumption, and low noise levels.
DIGITAL THERMOSTAT
Intuitive controller with accurate temperature detection from 32 to 95°F. Closed-loop temperature control system with an extremely tight differential of 1°F. Displays in °F or °C, and audible alarms for certain situations.
EFFICIENT DESIGN
Solid and durable structure designed to guarantee near perfect protection against corrosion. Rotatable in-set water connections, rotatable exhaust conveyor, and smaller form-factor help facilitate placement of chiller in confined spaces.
Teco TANK TK-500 Aquarium Chiller
EFFICIENT COOLING TECHNOLOGY
Internationally-recognized high-end compressors and titanium coaxial heat exchangers provide high performance, low energy consumption, and low noise levels.
DIGITAL THERMOSTAT
Intuitive controller with accurate temperature detection from 32 to 95°F. Closed-loop temperature control system with an extremely tight differential of 1°F. Displays in °F or °C, and audible alarms for certain situations.
EFFICIENT DESIGN
Solid and durable structure designed to guarantee near perfect protection against corrosion. Rotatable in-set water connections, rotatable exhaust conveyor, and smaller form-factor help facilitate placement of chiller in confined spaces.
Cooling Performance
The ability of the TANK TK-500 to pull down water temperatures in an 86°F room:
| AQUARIUM SIZE | TEMP. ATTAINABLE | HEATING LOAD | NET PULL-DOWN | C.O.P.* |
|---|---|---|---|---|
| 130 gallons | 77°F from 86°F | 1.89 watts/gal. | 9°F cooler | 2.0 |
| * Coefficient of Performance (COP) - a numerical value that represents cooling performance from a baseline room temperature of 86°F and a typical heat source (aka. Heating Load | ||||
Technical Specifications
| Recommended Aquarium Size |  |
up to 120 gallons |
| Horsepower | |
1/6 HP |
| Maximum Pressure | |
8.7 psi |
| Minimum Flow Rate | |
106 gallons per hour |
| Maximum Flow Rate | |
211 gallons per hour |
| In/Out Water Connection | |
5/8" tube diameter |
| Exchanger | |
titanium |
| Supply | |
120V-60Hz |
| Power Consumption | |
225 Watts |
| Gas/Refrigerant | |
R134a |
| Minimum Set Point | |
41°F |
| Maximum Set Point | |
95°F |
| Weight | |
36.4 lbs. (16.5 kg) |
| Dimensions | |
12.2" x 12.2" x 16.38" |
Item No. CH-TK500
